Hubbell Hubbell SNAP5362GYA
Hubbell SNAP5362GYA
Kirby Risk #: 2460096
UPC: 78358524774, 783585247748, 00783585247748, 30783585247749
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

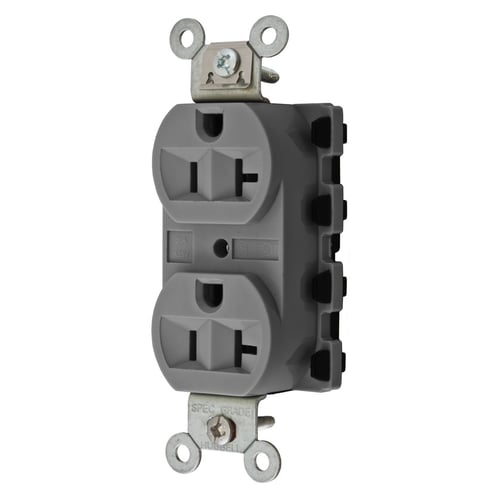

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray
Modified Industry Description
20A 125V - GRAY DUPLEX RECEPTACLE, SNAPCONNECT, INDUSTRIAL GRADE, 2 POLE, 3 WIRE
AD Description
Wiring Device-Kellems SNAPConnect® SNAP5362GYA 1-Phase Duplex Extra Heavy Duty Grounding Traditional Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Vendor Description
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Gray
|
| Connection |
Connectorized
|
| Conductor Size |
#12 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Specification
|
| Material |
Composite
|
| Mounting |
Strap
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single Phase Motors
|
| Poles |
2
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Duplex
|
| Voltage Rating |
125
|
| Wattage |
2500Watts
|
