Hubbell Hubbell SNAP3W1NA
Hubbell SNAP3W1NA
Kirby Risk #: 2460087
UPC: 78358518997, 783585189970, 00783585189970, 30783585189971
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Three Way Connector,Solid Wire, 15/20A North American
Modified Industry Description
15/20A 125V - RIGHT ANGLE SOLID PIGTAILED TERMINAL SNAPCONNECT, 2 POLE, 4 WIRE
AD Description

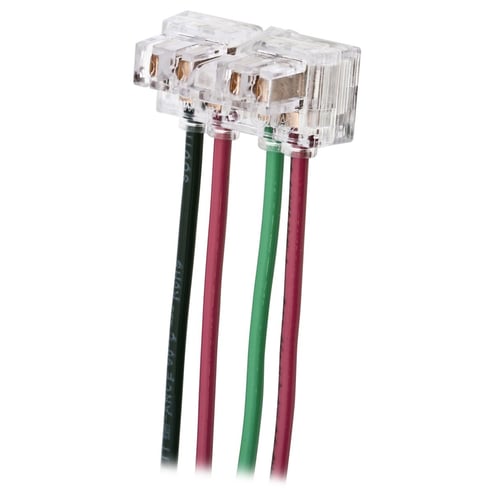

Wiring Device-Kellems SNAPConnect® SNAP3W1NA 4-Wire General Purpose Heavy Duty Right Angle Standard Switch Pigtailed Connector With 6 in Lead, 12 AWG Solid Wire, Fully Insulated Insulation, Polycarbonate
Specifications
| Action |
Positive Snap
|
|---|---|
| Amperage Rating |
15/20
|
| Application |
SNAPConnect Heavy Duty Switch Connector
|
| Brand Name |
Hubbell
|
| Color |
Colorless
|
| Connection |
Connectorized
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
PR
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R,5-20R
|
| Number_Of_Poles |
1
|
| Number_Of_Wires |
4
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
125
|
| Wattage |
5540
|
