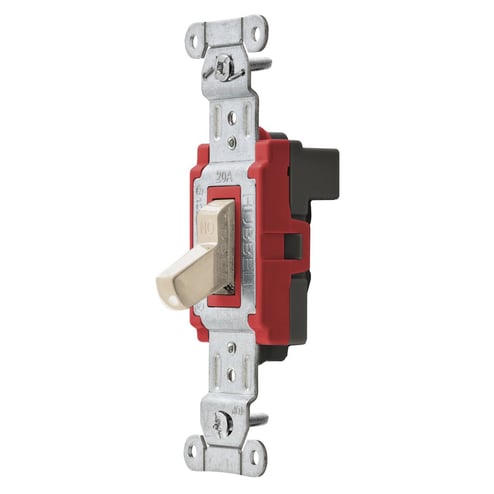

Hubbell Hubbell SNAP1223LANA


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, ThreeWay, 20A 120/277V AC, Light Almond, North American

Modified Industry Description

20 A 120/277 V 3-WAY POLE LIGHT ALMOND SNAPCONNECT SWITCH

AD Description

Wiring Device-Kellems SNAPConnect® SNAP1223LANA 2-Position 3-Way Commercial/Industrial Grade General Purpose Heavy Duty Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W Power Rating, SPDT Contact

Vendor Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in leu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.

Specifications

Action
Positive Snap
Actuator
Toggle
Amperage Rating
20
Application
SNAPConnect Heavy Duty
Brand Name
Hubbell
Color
Light Almond
Connection
Connectorized
Contact_Configuration
Two Position
Contact_Rating
Per UL 20
Country of Origin
PR
Enclosure
None
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
None
Material
Thermoplastic
Mounting
Screw Mount
Number_Of_Poles
1
Operating_Cycles
50k
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • Allows for circuit testing with standard test probes
  • Automatic self-grounding
  • Automatic self-grounding staple assures continuity to wall box
  • Eliminates exposed live parts for better safety
  • Low profile, flush fit provides stylish appearance and more wiring room
  • Poly bagged connector stays clean during construction
  • Steel, zinc plated bridge is corrosion resistant
  • Tamper resistant versions
  • Thread cleaning captive mounting screw
Standard
NEMA WD1, UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Type
General Purpose Switches
Voltage Rating
120/277
Wattage
5,540
