Siemens Siemens S2024B1100


Description

Industry Description

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. FACTORY INSTALLED MAINBREAKER WITH 20 1-INCH SPACES ALLOWING MAX 24 CIRCUITS. 1-PHASE 3-WIRESYSTEM RATED 120/240V (100A) 22KA INTERRUPT. SPECIAL FEATURES ALUMINUMBUS, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.. REPLACED BY SN2040B1100. AVAILABLE 4/1/2020

Modified Industry Description

1PH LC 20S 24C MB 100A AL INDOOR

AD Description

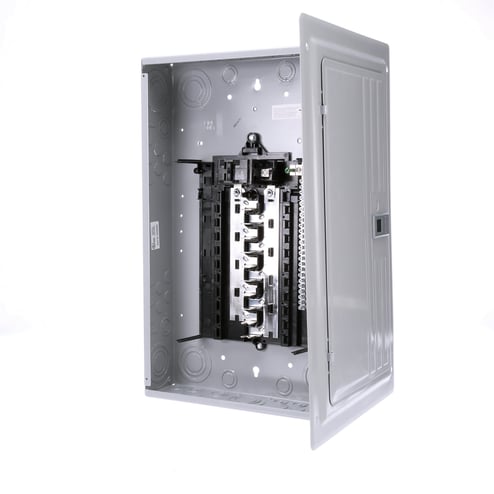

Siemens S2024B1100 ES Series Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 22 kA Interrupt

Vendor Description

The ES series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
100
Application
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Country of Origin
MX
Enclosure
TYPE1
Frequency_Rating
N/A
Interrupt_Rating
22
Mounting
Flush/Surface
Phase
1
Series
ES Series
Size
2262.1875
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices convertible from main lug to main breaker and vice versa
  • Aluminum busbar
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
UL
Type
ESSERIESASSEMBLEDLOADCENTER
Voltage Rating
120/240
Wattage
N/A
