NSI NSi L1000N
NSI L1000N
Kirby Risk #: 2458647
UPC: 66238103520, 662381035202, 00662381035202
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

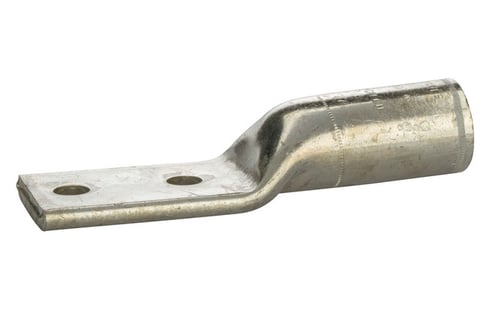

2Hole Long Barrel Copper Compression Lug1000 MCM-1/2" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
1000 MCM CU COMPRESSION LUG, 1/2
AD Description
NSI L1000N LN Series 2-Hole Compression Lug, 1000 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
White
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
7.1250
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Size |
L=7.12 - W=2.16 - OD=1.50 - ID=1.15
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - Two Hole
|
| Voltage Rating |
600
|
