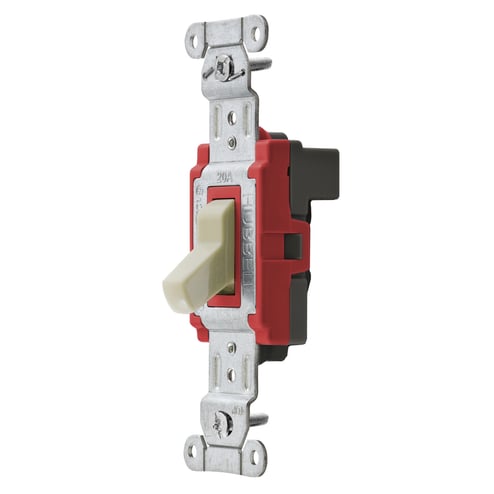

Hubbell Hubbell SNAP1221INA


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, SinglePole, 20A 120/277V AC, Ivory, North American

Modified Industry Description

20A 120/277V 1 POLE IVORY TOGGLE SWITCH, INDUSTRIAL/COMMERCIAL

AD Description

Wiring Device-Kellems SNAPConnect® SNAP1221INA 2-Position Commercial/Industrial Grade General Purpose Heavy Duty Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W Power Rating

Vendor Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in leu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.

Specifications

Action
Positive Snap
Actuator
Toggle
Amperage Rating
20
Application
Specification Grade
Brand Name
Hubbell
Color
Ivory
Connection
Connectorized
Contact_Configuration
Two Position
Contact_Rating
Per UL 20
Country of Origin
US
Enclosure
None
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
None
Material
Thermoplastic
Mounting
Screw Mount
Number_Of_Poles
Single
Operating_Cycles
50k
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • Allows for circuit testing with standard test probes
  • Automatic self-grounding staple assures continuity to wall box
  • Eliminates exposed live parts for better safety
  • Low profile, flush fit provides stylish appearance and more wiring room
  • Poly bagged connector stays clean during construction
  • Steel, zinc plated bridge is corrosion resistant
  • Tamper resistant versions
  • Thread cleaning captive mounting screw
Standard
NEMA WD1, UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Type
General Purpose Switches
Voltage Rating
120/277
Wattage
5,540
