Hubbell Hubbell HBL460MI12W
Hubbell HBL460MI12W
Kirby Risk #: 2449381
UPC: 78358551481, 783585514819, 00783585514819, 30783585514810
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

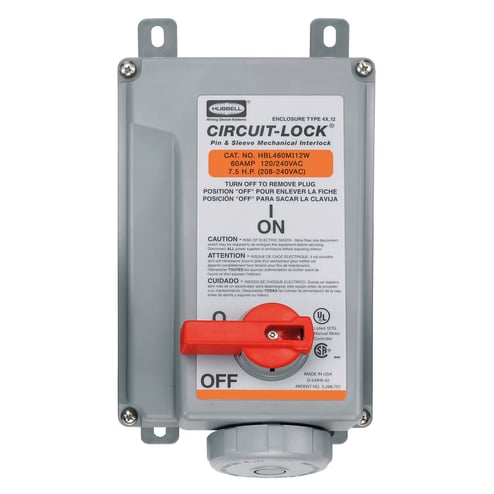

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange,Watertight
Modified Industry Description
PS, IEC, MECHINT, 3P4W, 60A
AD Description
Wiring Device-Kellems HBL460MI12W Female Grounding Watertight Mechanical Interlock, 125/250 VAC, 60 A, 3 Poles, 4 Wires
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Color |
Orange
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#8 AWG to #2 AWG
|
| Country of Origin |
PR
|
| Dimensions |
11 in H x 8-3/4 in W
|
| Enclosure |
NEMA 4X/12/IP67
|
| Environmental_Conditions |
Watertight
|
| Length1 |
14.7000
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Threaded
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Phase |
1
|
| Power_Rating |
7.5
|
| Series |
Unfused Circuit-Lock
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Female Grounding Watertight
|
| Voltage Rating |
125/250
|
| Wattage |
15k
|
