General Cable General Cable E2524S.41.03


Description

Industry Description

Multi-Conductor, Shielded, Non-Plenum NEC Type FPLR, 4C/16 SBC OA SH TYPE FPLR

Modified Industry Description

4C/16 SBC OA SH TYPE FPLR

AD Description

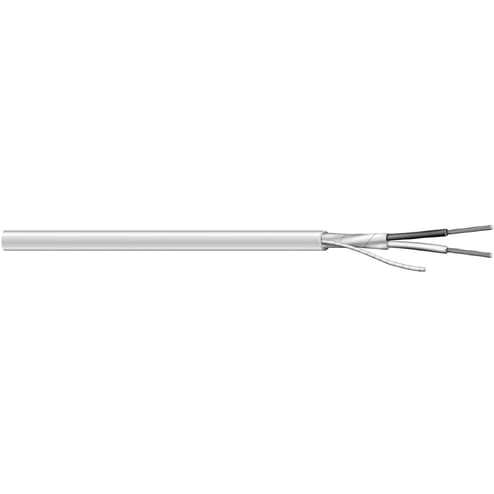

General Cable® Carol® E2524S.41.03 Type FPLR Multi-Conductor Non-Plenum Shielded Fire Alarm/Life Safety Cable, 300 VAC, (4) 16 AWG Stranded Bare Copper Conductor, 1000 ft Reel L

Vendor Description

Fire alarm systems have expanded from a rather simple and unsophisticated business configured upon large, electromechanical devices to one relying upon the most modern technologies of microprocessor and chip technology. More and more end users industrial, commercial as well as consumer are relying upon these emerging systems to protect both property and life. However, these systems are only as good as their weakest component, whether that component be a processor or interconnecting wire and cable. General Cable® manufactures all Carol® brand fire alarm products of only the finest available materials, and provides the service and assurance that the end user not only needs, but requires for use in these and any other systems. Aside from the quality materials used in these designs, specifiers and end users of Carol® brand wire and cable products have come to expect that these cables are registered and certified with the leading regulatory agencies such as Underwriters Laboratories and we haven't let you down! our Carol® brand designs have proven themselves in the area of fire system security over time, with all being fabricated with solid, bare copper conductors and insulations and jackets of premium-grade PVC. Offered both with and without shields, the former to protect these critical circuits from noise, these cables will provide the latest in available technology for the system installer and contractor.

Specifications

Application
Wiring of fire alarms Smoke alarms Voice communications Burglar alarms Fire protective circuits Suggested voltage rating: 300 volts
Brand Name
General Cable
Color
Red
Conductor Material
Copper
Conductor Size
16
Country of Origin
USA
Insulation_Material
PVC
Jacket_Material
PVC
Number Of Conductors
4
Special Features

  • 0.01 in THK nominal insulation
  • 0.015 in THK nominal jacket
  • 22 through 12 AWG fully annealed solid bare copper per ASTM B-3
  • Overall Flexfoil® polyester supported aluminum foil and stranded tinned copper drain wire shield
  • Premium grade, color coded Flexguard® PVC insulation
  • Premium grade, Flexguard® PVC jacket
  • Sequential footage marked to facilitate installation
  • Stranded tinned copper drain wire

Standard
NEC Article 760 Type FPLR (UL: 75°C, 300V) California State Fire Marshall Approved RoHS Compliant Directive 2002/95/EC Designed to meet UL 1666 Flame Test
Sub_Brand
General Cable
Temperature_Rating
-20 to 75
Type
FPLR
Voltage Rating
300
Width_2
11.7500
