Appleton Appleton TC050055NB

Industry Description

Tray Cable Connector, Type Straight, Hub Size 1/2 Inch, Cable Type Tray Cable, Cable Size 0.26 to 0.41 Inch (Insert), 0.41 to 0.55 Inch (No Insert), Diameter 1.3 Inch, Length 1.57 Inch, Constructional Feature Explosionproof, Material Electroless Nickel Plated Brass, Application Ordinary, Dry, Wet, Hazardous and Non-Hazardous Location, Approval UL 514B/2225, CSA C22.2, CAN, CSA, Enclosure Type Class I Div 2 Group A B C D, Class II Div 2 Group E F G, Class III Div 2, NEMA 4X, IP66/IP67/IP68, Continuous Operating Temperature -60 to 110 Deg C, Minimum Thread Length 0.78 Inch

Modified Industry Description

NKL BRS TRAY CABLE FTG 050NPT

AD Description

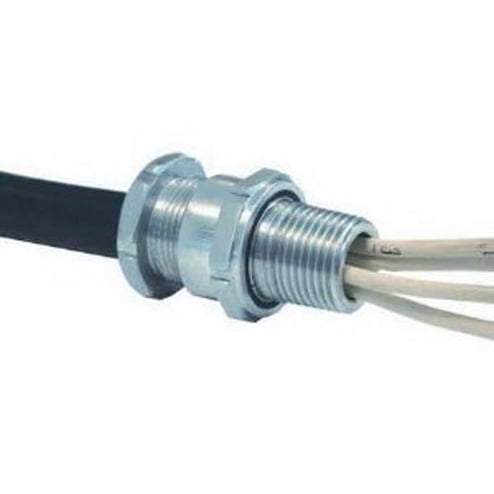

Appleton® TC050055NB Explosionproof Type TC Straight Cable Connector, 1/2 in Trade, 0.26 to 0.41 in Insert/0.41 to 0.55 in No Insert Cable Openings, Brass, Nickel Plated

Vendor Description

Appleton® is proud to offer a broad line of tray cable connectors for use with TC, ITC, PLTC and other types of tray cable. The unique compensating displacement seal provides ingress protection to NEMA 4X and IP68. Available in aluminum, stainless steel and nickel-plated brass, Appleton® tray cable connectors meet the exacting demands of highly caustic or harsh environments, such as food processing, petrochemical, wastewater treatment, pulp and paper or chemical manufacturing facilities.
