Hoffman Hoffman HCP514BSS


Description

Industry Description

InterSafe Type 4/4X/12 Data Interface Port Disk Drive Enclosure, 143x176x24mm, SS Type 304

Modified Industry Description

COMP BAY PROG PORT 4X

AD Description

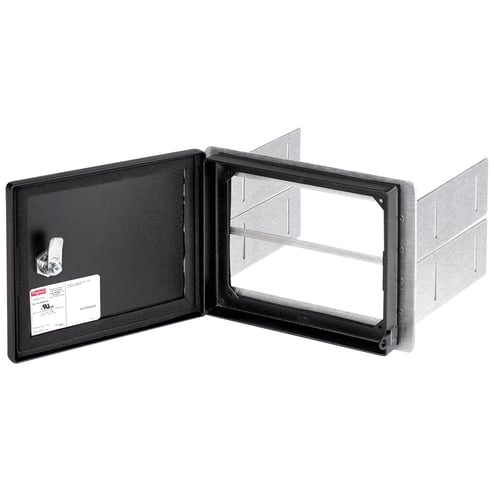

Hoffman INTERSAFE™ HCP514BSS A70E Data Interface Port Disk Drive Enclosure, CP2/514b Configuration

Vendor Description

This enclosure, available in both steel and stainless steel, allows access to one or two customer supplied disk drives from outside the cabinet, allowing computer system use and updates without opening the cabinet.

Specifications

Application
Arc Flash Safety; Controls and Drives; Corrosive Environments
Color
Black
Country of Origin
US
Finish
Brushed
Length1
9.2500
Material
Stainless Steel 304
NEMA_Rating
12 Indoor, dust-resistant
Series
A70E
Size
143X176X24mm
Special Features

  • 120 VAC receptacles and programming connectors are mounted to the plate in 72 standard configurations
  • All standard configurations include a GFCI or standard duplex receptacle with a 5 A circuit breaker for added safety
  • Disk drive enclosure provides access to one or two customer supplied disk drives without opening the cabinet
  • Door gasket between the door and plate assemblies and plate gasket between the plate assembly and the enclosure together provide a tight seal
  • Frame and door assembly with aluminum back plate included with all models
  • Quarter turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
  • Quarter turn latch with screwdriver slot on polycarbonate models
  • Ready to use
  • Stainless steel 2 gang dual CD/DVD drive cover
  • Template provided for accurate enclosure cutout dimensions
Sub_Brand
INTERSAFE
Type
Data Interface Port
