Hoffman Hoffman SF0924414

Hoffman SF0924414

Kirby Risk #: 2446544

UPC: 78351020011, 783510200114, 00783510200114

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hoffman

Description

Modified Industry Description

9 IN FILTER FAN 24V

AD Description

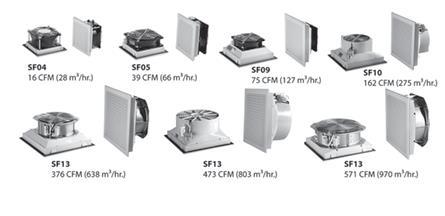

Hoffman SF0924414 MCLF SF09 Filter Fan, 24 VDC, 0.17 A, 4.1 W Power Rating, 75 cfm Air Flow, NEMA 12/IP54 Enclosure

Amperage Rating	0.17
Application	Industrial
Brand Name	Hoffman
Country of Origin	DE
Material	Plastic
Phase	1
Size	8.03x8.03x3.54 in
Special Features	1-phase Click fit design quickly installs into enclosure wall, no tools or screws required Enclosure side wall mounting Optional thermostat available to save energy and extend service life RAL 7035 light gray UV-resistant plastic standard Similar cut-out sizes as other filter fan manufacturers Simple snap-open grille for easy filter replacement Standard foam-in-place gasket Terminal wire connections
Standard	UL/cUL recognized, CE, CSA (fan motor only), Type 12, IP54 standard, Type 12, IP55 optional
Sub_Brand	Hoffman
Type	SF09
Voltage Rating	24
