NSI NSi 800L2
NSI 800L2
Kirby Risk #: 2445351
UPC: 66238100133, 662381001337, 662381978387, 00662381001337
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

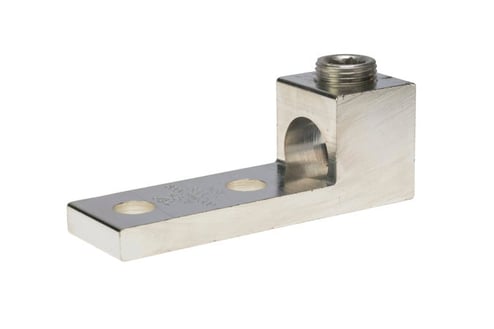

1 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Modified Industry Description
NEMA PANELBOARD LUG 800-300 MCM
AD Description
NSI 800L2 Dual Rated Panelboard Lug, 300 to 800 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Copper and Aluminum Conductors
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Country of Origin |
USA
|
| Environmental_Conditions |
90 C
|
| Finish |
Aluminum
|
| Length1 |
4.7500
|
| Material |
Aluminum
|
| Number Of Conductors |
1
|
| Number_Of_Poles |
1
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Panelboard Lug
|
| Voltage Rating |
600
|
