Southwire Southwire CAT6 250 MHZ 23/4P SOL BC CMP BLUE

Name: Southwire CAT6 250 MHZ 23/4P SOL BC CMP BLUE
Brand: Southwire
SKU: 2444758
Price: 0.69 USD
Availability: InStock

Southwire CAT6 250 MHZ 23/4P SOL BC CMP BLUE

Kirby Risk #: 2444758

UPC: 03288688573, 032886885730, 00032886885730

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Modified Industry Description

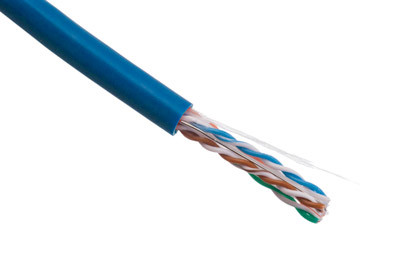

CAT6 23 AWG 4 PAIR TWISTED DATE CABLE BLUE 1000 FT

Brand Name	Southwire
Color	Blue
Conductor Size	23
Insulation_Material	FEP
Jacket_Material	PVC
Number Of Conductors	4 Pairs
Resistance	9.38
Special Features	1.4 in minimum bend radius 1000 ft pull box 15 pF/ft capacitance nominal at 1KHz 25 lb maximum pulling force 70% nominal velocity of propagation speed of light 9.38 Ohm DC resistance (max) for 100 m (328 ft) at 20 deg C Accepts and is compatible with all standard RJ45 connectors CMP rated on NFPA 262 (previously UL 910 Steiner tunnel test) Constructed and color-coded to TIA/ANSI standards ETL certified to TIA 568-C.2 category 5e standards (electrical testing certifications) Low smoke flame retardant(FR)PVC Pair 1 - blue stripe on white and blue, pair 2 - orange stripe on white and orange, pair 3 - green stripe on white and green, pair 4 - Brown stripe on white and brown Rip cord - longitudinally applied under jacket Sweep tested to 250 MHz UL listed to the applicable NEC requirements for each type (flame test listings)
Temperature_Rating	-20 to 75
Type	Type CMP Cat 6
Voltage Rating	300
