Hubbell Hubbell HBL4200CS1WR
Hubbell HBL4200CS1WR
Kirby Risk #: 2443221
UPC: 78358501228, 783585012285, 00783585012285, 30783585012286
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Connector Body, 200A 600V AC,3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black,Watertight- Reversed Service
Modified Industry Description
PS, INS, CONN, 3P4W, 200A 600V, S1
AD Description

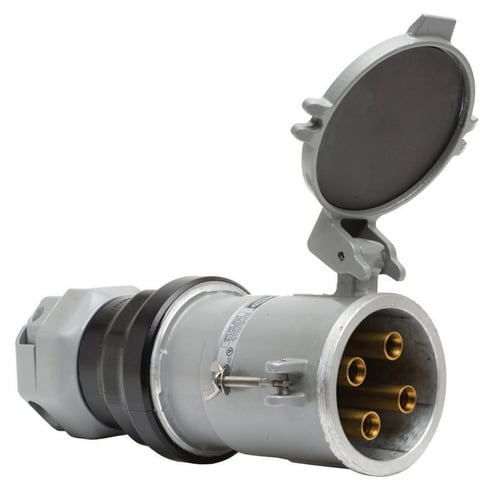

Wiring Device-Kellems HBL4200CS1WR Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 600 VAC/250 VDC, 200 A, 3 Poles, 4 Wires, Black/Gray
Specifications
| Amperage Rating |
200
|
|---|---|
| Application |
High Ampacity Connections
|
| Color |
Black/Gray
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Length1 |
16.1000
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding Style 1
|
| Number_Of_Poles |
3
|
| Series |
UL 1686 Class 1 Insulgrip®
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, and UL1686
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
600//250
|
