Hubbell Hubbell SNAP1223WNA

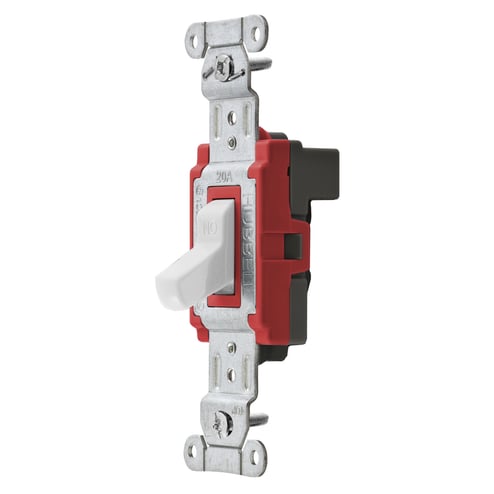

Hubbell SNAP1223WNA
Kirby Risk #: 2440537
UPC: 78358518944, 783585189444, 00783585189444, 30783585189445
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, ThreeWay, 20A 120/277V AC, White, North American
Modified Industry Description
20A 120/277V WHITE 3P SNAP SWITCH
AD Description
Wiring Device-Kellems SNAPConnect® SNAP1223WNA 3-Way General Purpose Toggle Switch, 120 to 277 VAC, 20 A, 1 to 2 hp, SPDT
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
Specification Grade
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Connectorized
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
US
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3-Way
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
