Bussmann Bussmann CHCC3DU

Name: Bussmann CHCC3DU
Brand: Bussmann
SKU: 2438982
Price: 211.16 USD
Availability: InStock

Bussmann CHCC3DU

Kirby Risk #: 2438982

UPC: 05171236269, 051712362696, 00051712362696

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

30AMP 48V MODULAR FUSE HLDR

Modified Industry Description

CC 3 POLE MODULAR FUSE HOLDER , 30A 600V

AD Description

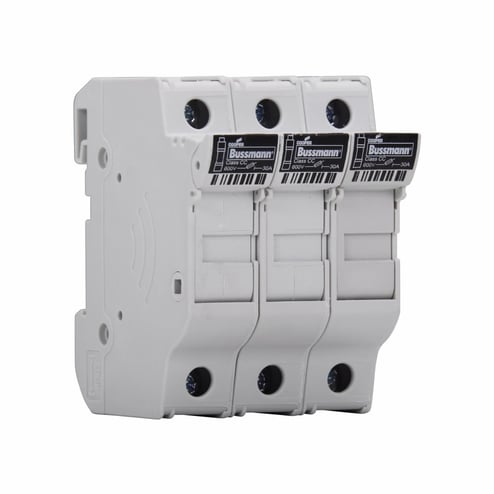

Edison CHCC3DU Modular Fuse Holder, 48 VDC, 30 A, Class: CC, 18 to 4 AWG Wire, 3 Poles

Amperage Rating	30
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Class	CC
Country of Origin	MUL
Mounting	Din Rail
Operating_Temperature	-20 To 120 Deg C
Package_Quantity	1
Poles	3
Size	2.067 In Width X 3.275 In Depth X 2.909 In Height
Special Features	Available remote PLC indication with the CH-PLC module Complete range of UL Listed and high SCCR rated 1 and 3-phase finger safe comb-bus bars and power feed lugs Complete range of UL listed and high SCCR rated 1-phase and 3-phase finger safe comb bus bars and power feed lugs Enhanced safety with IP20 finger safe construction High SCCR rated, UL listed class CC holder with indicator option for 600 VAC/VDC and 48 VDC Wiring flexibility with terminals rated for use with 75 or 90 deg C solid, stranded and fine stranded wire and spade terminals and comb-bus bars Without indicator
Standard	UL, CSA, CCC
Sub_Brand	Cooper Bussmann
Type	Class CC Fuse Holder
Voltage Rating	600
