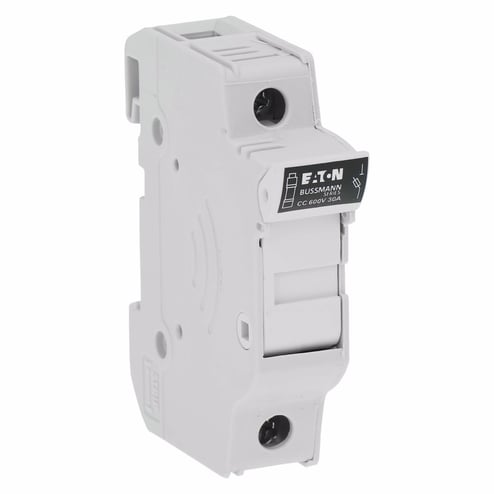

Bussmann Bussmann CHCC1DU


Description

Industry Description

30AMP 48V MODULAR FUSE HLDR

Modified Industry Description

CC 1 POLE MODULAR FUSE HOLDER , 30A 600V

AD Description

Bussmann CHCC1DU Finger-Safe Modular Fuse Holder, 600 VAC/48 VDC, 30 A, 18 to 4 AWG Wire, 1 Pole

Vendor Description

EATON Bussmann series CH DIN-Rail fuse holders are for UL Class CC and midget fuses and IEC 10x38 fuses. They are available with and without indication in 1, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

Specifications

Amperage Rating
30
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Class
CC
Color
White
Country of Origin
MUL
Fuse_Diameter
10
Material
Polyester
Mounting
Din Rail
Operating_Temperature
-20 To 120 Deg C
Package_Quantity
1
Poles
3
Size
0.689 Width X 3.275 In Depth X 2.909 In Height
Special Features

  • 18 to 4 AWG copper wire size
  • Agency ratings up to 1000 VDC for use with PV fuses
  • Captive fully backed out phillips slotted screw
  • Complete range of UL listed and high SCCR rated 1 and 3-phase finger safe comb bus bars and power feed lugs
  • Easy color coding for use yellow for PV, red for IEC and black for UL applications
  • Enhanced safety with IP20 finger safe construction
  • Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and with comb bus bars
  • Toolless ganging for multiple poles
  • Use any higher temperature rated wire with appropriate derating
  • Wire strip gauge
  • Without indication
  • Without indicator
  • Withstands 200 kA (RMS Symmetrical) interrupt rating
Standard
UL, CSA, CCC
Sub_Brand
Cooper Bussmann
Type
Finger Safe Modular
Voltage Rating
48
