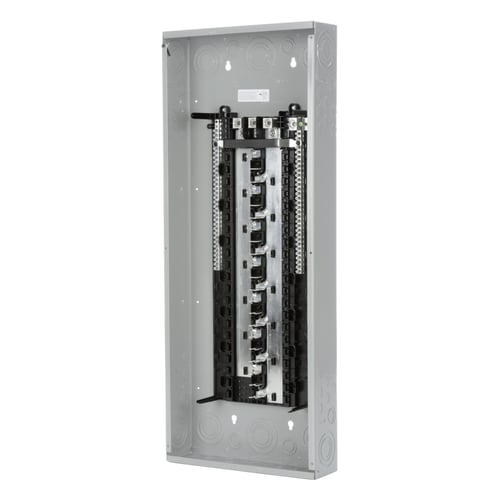

Siemens Siemens S4260L3225


Description

Industry Description

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. MAIN LUG WITH 42 1-INCH SPACES ALLOWING MAX 60 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (225A) 100KA INTERRUPT. SPECIAL FEATURES ALUMINUM BUS, GRAY TRIM, NEMA TYPE1 ENCLOSURE FORINDOOR USE.

Modified Industry Description

3PH LC 42S 60C ML 225A AL INDOOR

AD Description

Siemens S4260L3225 ES Series Three Phase Main Lug Load Center, 120/240 VAC, 225 A, 22 kA Interrupt

Vendor Description

The ES series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
225
Brand Name
Siemens
Bus_Rating
225
Cable_Size
N/A
Country of Origin
MX
Cover_Type
ES Series
Enclosure
Indoor Type 1
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
225A
Mounting
Combination
Number_Of_Spaces
42
Phase
3
Size
3214.6875
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • Aluminum busbar
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
Standard
N/A
Sub_Brand
Siemens
Type
1
Voltage Rating
120/240
Wattage
N/A
Width_2
40.0000
Wiring_Configuration
3/4-Wire Delta
