Hubbell Hubbell HBL8200RED
Hubbell HBL8200RED
Kirby Risk #: 2435740
UPC: 78358524752, 783585247526, 00783585247526, 30783585247527
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

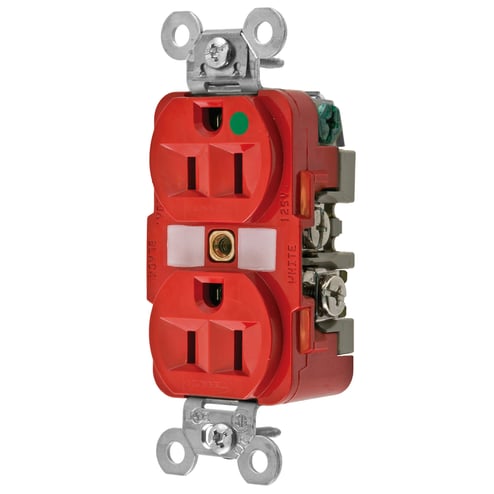

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 15A 125V, 5-15R, Red,Illuminated Face
Modified Industry Description
15A 125V RECPT RED HOSPITAL ILLUMINATED FACE
AD Description
Wiring Device-Kellems HBL8200RED Duplex Extra Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Hospital Grade
|
| Color |
Red
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
PR
|
| Dimensions |
3.28 in H x 1.65 in W x 1.19 in D
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Horsepower |
1/2
|
| Length1 |
4.1600
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Hospital Grade
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Duplex Extra Heavy Duty Grounding
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
