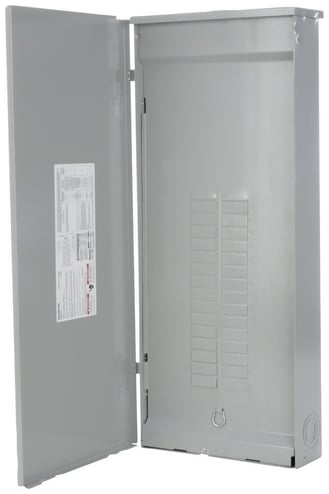

Siemens Siemens SW3054L3200


Description

Industry Description

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. MAIN LUG WITH 30 1-INCH SPACES ALLOWING MAX 54 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES ALUMINUM BUS, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.

Modified Industry Description

3PH LC 30S 54C ML 200A AL OUTDOOR

AD Description

Siemens SW3054L3200 ES Series Three Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The ES series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Application
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Country of Origin
MX
Enclosure
TYPE3R
Frequency_Rating
N/A
Interrupt_Rating
22
Length1
15.5000
Mounting
Flush/Surface
Mounting_Type
Surface
Phase
3
Series
ES Series
Size
2838.4375
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • Aluminum busbar
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outdoor enclosure
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
Standard
N/A
Sub_Brand
UL
Type
ESSERIESASSEMBLEDLOADCENTER
Voltage Rating
120/240
Wattage
N/A
