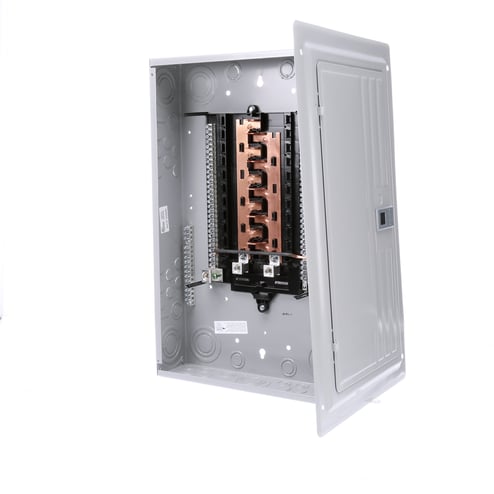

Siemens Siemens P2030L1150CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 20 1-INCHSPACES ALLOWING MAX 30 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V(150A) 100KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLEMAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.. REPLACED BY PN2040L1150C. AVAILABLE 4/1/2020

Modified Industry Description

1PH LC 20S 30C ML 150A CU INDOOR

AD Description

Siemens P2030L1150CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 150 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
150
Application
Residential
Country of Origin
MX
Dimensions
24 in H
Enclosure
Indoor Type 1
Frequency_Rating
N/A
Interrupt_Rating
22
Mounting
Combination
Mounting_Type
Flush/Surface
Phase
1
Series
PL Series
Size
2426.5
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Copper busbar
  • Dual neutrals on all configurations
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
Siemens
Type
1
Voltage Rating
120/240
Wattage
N/A
