Siemens Siemens P3030B1150CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAINBREAKER WITH 30 1-INCH SPACES ALLOWING MAX 30 CIRCUITS. 1-PHASE 3-WIRESYSTEM RATED 120/240V (150A) 22KA INTERRUPT. SPECIAL FEATURES COPPERBUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOORUSE.. REPLACED BY PN3030B1150C. AVAILABLE 4/1/2020

Modified Industry Description

1PH LC 30S 30C MB 150A CU INDOOR

AD Description

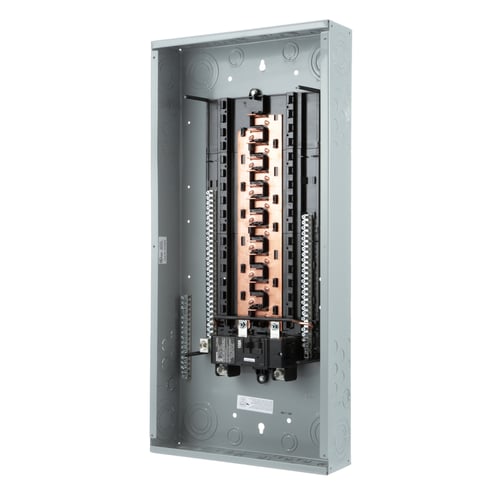

Siemens P3030B1150CU PL Series Single Phase Main Breaker Load Center, 120/240 VAC, 150 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
150
Brand Name
Siemens
Bus_Rating
150
Cable_Size
N/A
Circuit_Breaker_Type
MB
Country of Origin
MX
Cover_Type
PL Series
Enclosure
Indoor Type 1
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
150A
Mounting
Combination
Number_Of_Spaces
30
Phase
1
Size
2978.5
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Dual neutrals on all configurations
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
Siemens
Type
1
Voltage Rating
120/240
Wattage
N/A
Width_2
40.0000
Wiring_Configuration
3-Wire
