Siemens Siemens SW1224L3200


Description

Industry Description

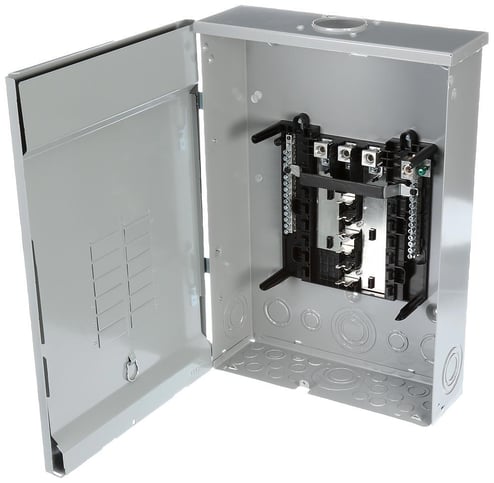

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. MAIN LUG WITH 12 1-INCH SPACES ALLOWING MAX 24 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES ALUMINUM BUS, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.

Modified Industry Description

3PH LC 12S 24C ML 200A AL OUTDOOR

AD Description

Siemens SW1224L3200 ES Series Three Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The ES series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Brand Name
Siemens
Bus_Rating
ALUMINUMBUS
Cable_Size
N/A
Country of Origin
MX
Cover_Type
ES Series
Enclosure
Outdoor Type 3R
Frequency_Rating
N/A
Interrupt_Rating
100000
Load_Regulation
200A
Mounting
Surface
Number_Of_Spaces
12S
Phase
3
Size
1753.4375
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • Aluminum busbar
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outdoor enclosure
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
Standard
N/A
Sub_Brand
Siemens
Type
ESSERIESASSEMBLEDLOADCENTER
Voltage Rating
120/240
Wattage
N/A
Wiring_Configuration
3/4w
