General Cable General Cable C5822.41.01


Description

Industry Description

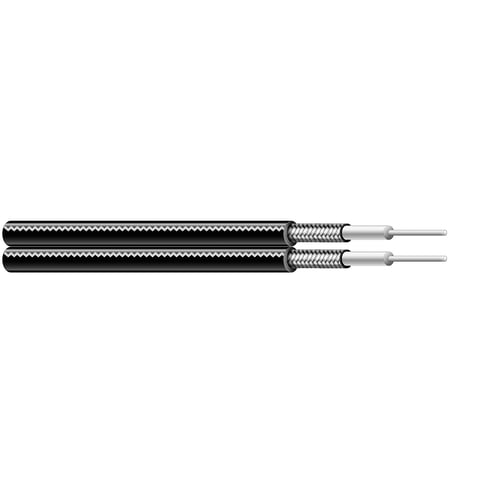

Coaxial Cable, RG 6/U Type, 2C/18 RG6/U DUAL DBS CL2/CM, 1000' Reel

Modified Industry Description

2C/18 RG6/U DUAL DBS CL2/CM

AD Description

General Cable® Carol® C5822.41.01 Type RG 6/U CL2/CM Coaxial Cable, (47) 18 AWG Solid Copper Clad Steel Conductor, 1000 ft Reel L

Vendor Description

To meet the needs of today's sophisticated, high-speed, wide bandwidth electronics over long distances, with minimum signal loss or degradation, General Cable® Carol® brand offers a wide range of coaxial and twin axial designs in both unbalanced arrays and precision-balanced pairs. This offers the system designer a wide choice of cost-effective products that reflect the most recent changes in the standards set by UL, CSA and/or the FCC. Our recommended Carol® brand coaxial constructions for the CATV market may differ in certain parts of the country. Unlike other products in the electronic market, coaxial cable does not have one accepted standard construction. General Cable® recommends, in order to avoid installing an unacceptable coaxial cable for the CATV application in your area, the local CATV company should be consulted. The Carol® brand product mix encompasses standard RG/U-type coaxial constructions in the more popular 50, 75 and 93 Ohm designs and miniature coaxial products for smaller high-speed applications. The twin axial products meet or exceed the stringent demands of today's precision- balanced pair systems. The minimization of capacitance unbalance is a necessary requirement for long distance data transmission.

Specifications

Application
LAN cable HDTV Digital video Direct broadcast satellite
Color
Black
Conductor Type
Solid Copper Clad Steel
Conductor Size
18
Country of Origin
USA
Frequency_Rating
1 to 3000
Length1
1000 ft Reel
Number Of Conductors
47
Outside_Diameter
0.267 x 0.595
Special Features

  • 0.18 in insulation
  • 1 MHz at 0.26 dB/100 ft, 10 MHz at 0.81 dB/100 ft, 50 MHz at 1.46 dB/100 ft, 100 MHz at 2.05 dB/100 ft, 200 MHz at 2.83 dB/100 ft, 500 MHz at 4.53 dB/100 ft, 1000 MHz at 6.59 dB/100 ft, 1450 MHz at 8.1 dB/100 ft, 1800 MHz at 8.8 dB/100 ft, 2200 MHz at 10.10 dB/100 ft, 3000 MHz at 11.79 dB/100 ft attenuation
  • 100% Flexfoil® bonded 60% aluminum braid 9 Ohm/mft shield coverage nominal DCR
  • 83% velocity of propagation
  • Copper per ASTM B-3 and copper clad steel per ASTM B-869 conductors
  • Foam polyethylene (PE) insulation/core
  • Tinned copper or aluminum braid

Sub_Brand
General Cable
Type
Type RG 6/U CL2/CM
