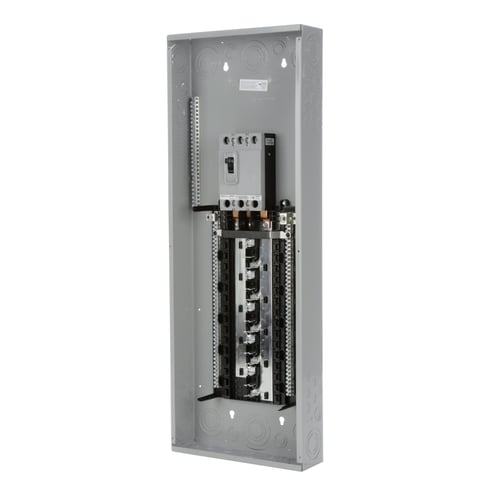

Siemens Siemens P3054B3200CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 30 1-INCH SPACES ALLOWING MAX 54 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 22KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.

Modified Industry Description

200A 240V MB 53C 3PH INDOOR PANEL

AD Description

Siemens P3054B3200CU PL Series Three Phase Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Brand Name
Siemens
Bus_Rating
200
Cable_Size
N/A
Circuit_Breaker_Type
MB
Country of Origin
MX
Cover_Type
PL Series
Enclosure
Indoor Type 1
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
200A
Mounting
Combination
Number_Of_Spaces
30
Phase
3
Size
3818
Special Features

  • 200 A load regulation
  • 3818 size
  • 60/75 deg C temperature
  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Dual neutrals on all configurations
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
  • Tin plated copper busbar
Standard
N/A
Sub_Brand
Siemens
Type
1
Voltage Rating
120/240
Wattage
N/A
Width_2
40.0000
Wiring_Configuration
3/4-Wire
