General Cable General Cable C0954A.21.10


Description

Industry Description

Multi-Conductor, Foil/Braid Shield, UL 2464, NEC Type CL2 (UL) or CM (UL) c(UL), CSA CMG, 6C/24 7/32TC FL/BRD SH CM

Modified Industry Description

6C/24 7/32TC FL/BRD SH CM

AD Description

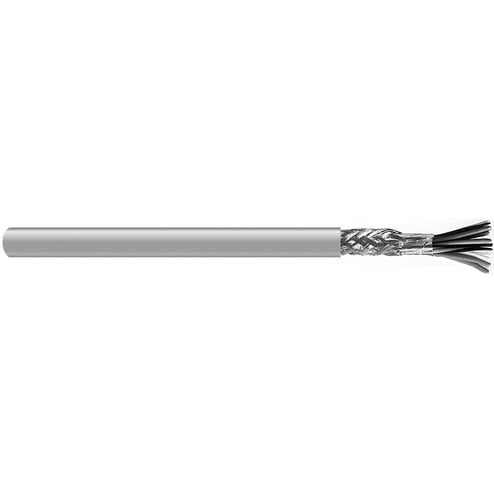

General Cable® Carol® C0954A.21.10 Type CM/CMG Foil/Braid Shielded Multi-Conductor Computer Cable, 300 VAC, (6) 24 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft Spool L

Vendor Description

General Cable® complete line of Carol® brand paired and unpaired, shielded computer cables are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications. We also offer a variety of put-ups for computer cables to meet your individual requirements. Carol® brand computer cables are manufactured to meet the latest UL, CSA, NEC and RoHS requirements and approvals.

Specifications

Color
Gray
Conductor Type
Fully Annealed Stranded Tinned Copper
Conductor Size
24
Country of Origin
USA
Length1
1000 ft Spool
Number Of Conductors
6
Outside_Diameter
0.223
Special Features

  • 0.01 in THK nominal insulation
  • 0.032 in THK nominal jacket
  • 100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out shield
  • 25.7 conductor/4.6 shield Ohm/kft
  • 30 pF/ft capacitance between conductors, 55 pF/ft capacitance between one conductor and other conductors connected to shield
  • 65% tinned copper braid
  • Assists system designers in meeting FCC docket 20780 demands
  • Braid shield provides good flexibility
  • Premium grade, color coded S-R PVC insulation
  • Superior shielding where noise rejection is critical
Sub_Brand
General Cable
Temperature_Rating
-20 to 80
Type
Type CM/CMG Foil/Braid Shielded Multi-Conductor
Voltage Rating
300
