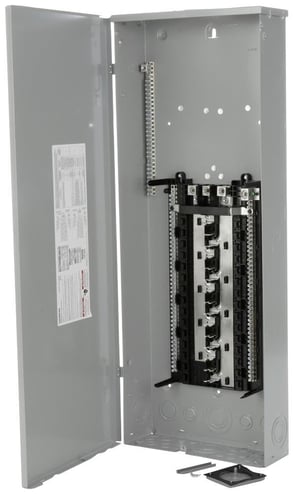

Siemens Siemens PW3054L3200CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 30 1-INCH SPACES ALLOWING MAX 54 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMATYPE3R ENCLOSURE FOR OUTDOOR USE.

Modified Industry Description

200A NEMA 3R 30 SPACE MAIN LUG LOAD CENTER, COPPER OUTDOOR, 54 CIRCUITS

AD Description

Siemens PW3054L3200CU PL Series Three Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Brand Name
Siemens
Bus_Rating
200
Cable_Size
N/A
Country of Origin
MX
Cover_Type
PL Series
Enclosure
NEMA 3R
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
200A
Mounting
Surface
Number_Of_Spaces
30
Phase
3
Size
3061.25
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Copper busbar
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outdoor enclosure
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
Standard
N/A
Sub_Brand
Siemens
Type
Lug
Voltage Rating
120/240
Wattage
N/A
Wiring_Configuration
3/4-Wire Delta
