Siemens Siemens P1212L1125CU

Siemens P1212L1125CU

Kirby Risk #: 2420320

UPC: 04089263602, 040892636024, 00040892636024

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Modified Industry Description

125A 240V ML 12C 1PH INDOOR PANEL

AD Description

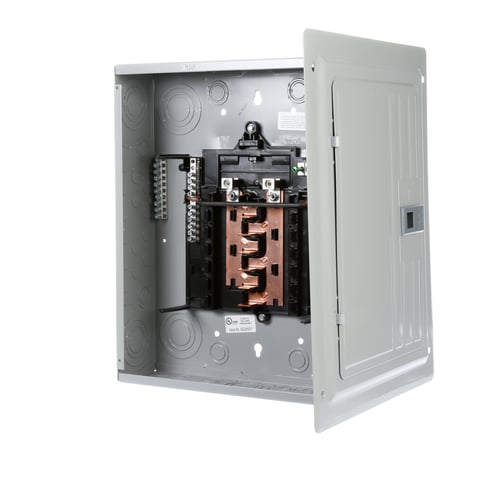

Siemens P1212L1125CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Amperage Rating	125
Brand Name	Siemens
Bus_Rating	125
Circuit_Breaker_Type	MBK100A or MBK125A Field Installed
Country of Origin	MX
Cover_Type	PL Series
Enclosure	NEMA 1
Interrupt_Rating	22
Load_Regulation	125A
Mounting	Combination
Number_Of_Feeders	12
Number_Of_Spaces	12
Phase	1
Size	14-1/2 IN Width X 3-7/8 IN Depth X 18 IN Height
Special Features	1/0 AWG copper, 3/0 AWG aluminum A rigid, sturdy base pan provides the ruggedness required for the most harsh applications All devices are provided with 2 factory installed ground bars All devices convertible from main lug to main breaker and vice versa Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility Combination mounting Copper busbar Dual neutrals on all configurations Indoor enclosure Invertible for bottom feed application MBK100A/MBK125A breaker Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws Suitable for use as service entrance equipment when not more than six main disconnecting means are provided The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field The visible neutral and grounds system aids in the insertion of conductors
Standard	UL Listed
Sub_Brand	Siemens
Type	Lug
Voltage Rating	120/240
Width_2	40.0000
Wiring_Configuration	3-Wire
