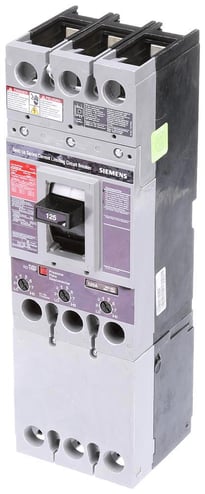

Siemens Siemens CFD63B125
Siemens CFD63B125
Kirby Risk #: 2414516
UPC: 78364321216, 783643212169, 00783643212169
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 125A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 4.50 x 14.3 x 4.00.
Modified Industry Description
BREAKER FD 3P 125A 600V 100KA NL
AD Description
Sentron™ CFD63B125 Current Limiting Fuseless Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 125 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
125
|
| Application |
Standard 40C Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 6 in W x 15 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
CFD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
100
|
| Length1 |
15.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Current Limiting Fuseless Low Voltage
|
| Voltage Rating |
600 VAC/500 VDC
|
