Hoffman Hoffman DBL482412G


Description

Industry Description

L-Box, Type 1, 48.00x24.00x12.00, Lt Gray, Steel

Modified Industry Description

L-BOX 48X24X12, GRAY

AD Description

Hoffman DBL482412G DWS1 L-Box Cabinet, 48 in L x 24 in W x 12 in D, NEMA 1/IP30 NEMA Rating, Steel

Vendor Description

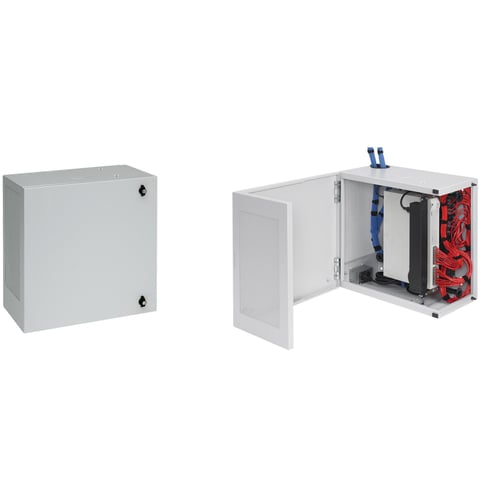

The low-profile, vertically-oriented L-Box wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sides to installed equipment while fixed rack angles accommodate varying equipment sizes.

Specifications

Application
The low-profile, vertically-oriented L-BOX™ wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sid
Color
Light Gray
Country of Origin
US
Finish
Polyester Powder Coated
Length1
48
Material
Steel
NEMA_Rating
NEMA 1/IP30
Series
DWS1
Special Features

  • 120 deg door opening
  • 36 and 48 in tall models have space for patch panel or shelf brackets
  • Bonding provision on door
  • Ground stud on body
  • Holes are tapped #10-32
  • Keyhole mounting slots spaced 16 in on center for easy cabinet mounting
  • Knockouts for 4 in fan on top and bottom of cabinet
  • Manufactured from 14 ga mild steel
  • Multiple cable tie down points on back of cabinet
  • quarter turn latches with key lock
  • Rack angles on 36 in (914 mm) models can be positioned either at the top or the bottom of the cabinet
  • Self-grounding mounting angles made of 12 ga plated steel
  • Spring loaded, self-retained hinge pins allow door removal
  • Wiring knockouts on top and bottom of cabinet and (2) 3 in cable entry knockouts on back
Standard
UL 1863 Listed, File No. E230874, UL 508A Listed, Type 1, File Number E61997, cUL Listed per CSA C22.2 No. 182.4, File No. E230874, Ventilation complies with UL 60950, Designed in accordance with BICSI TDMM Tenth edition, , Chapter 7, Telecommunication
Sub_Brand
Hoffman
Type
L-BOX™, Type 1
