Siemens Siemens 3RT1476-6AF36
Siemens 3RT1476-6AF36
Kirby Risk #: 2412839
UPC: 11209510104, 75455477353, 754554773537, 00754554773537
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Contactor,IEC,Sirius,3 Pole Resistive 3 Pole,Non-Reversing 110 - 127 AC/DC CoilFrame Size S12,N/AA Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs(Not Included) Terminals UL File E31519 in Vol.11 Sec. 4
Modified Industry Description
CONTACTOR,RESIST,S12,690A,110-127V,
AD Description

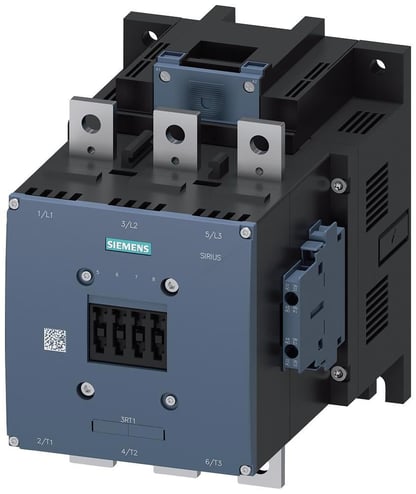

SIRIUS 3RT1476-6AF36 Power Contactor, 110 to 127 VAC/VDC, 220 to 240 VAC/VDC Coil, 690 A, 2NO-2NC, 3 Poles
Specifications
| Country of Origin |
DE
|
|---|---|
| Dimensions |
214 mm H x 160 mm W x 225 mm D
|
| Frequency_Rating |
50/60
|
| Length1 |
11.0000
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
-25 to 60
|
| Power_Factor |
0.9 Closing/0.9 Holding
|
| Size |
Size S12
|
| Special Features |
|
| Wattage |
90
|
