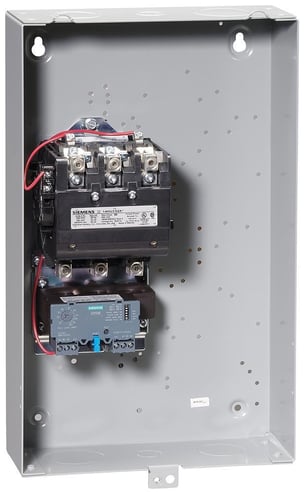

Siemens Siemens 14HUG32BA


Description

Industry Description

Non-reversing motor starter, Size 3, Three phase full voltage, Solid-state overload relay, OLR amp range 25-100A, 110 120/220 240VAC 60Hz coil, Non-combinationtype, Enclosure type 1, Indoor general purpose use, Standard width enclosure

Modified Industry Description

STARTER,FVNR

AD Description

Siemens 14HUG32BA SZ 3 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing NEMA Motor Starter, 110 to 120 VAC, 220 to 240 VAC, 110 VAC, 190 to 220 VAC Coil, 3 Poles, NEMA 1 Enclosure

Specifications

Country of Origin
MX
Number_Of_Poles
3
Size
NEMA 3
Special Features

  • 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
  • 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480 VAC, 575/600 VAC motor power
  • 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480/575/600 VAC
  • Box lug line side/load side outgoing feeder connection
  • Dual voltage and dual frequency coils
  • Easy coil access
  • Gravity dropout
  • Half sizes for cost and space savings
  • Large silver cadmium contacts
  • Overload test feature
  • Rugged industrial design
  • Straight-thru wiring
Standard
UL Listed File E14900, CSA Certified File LR6535
Sub_Brand
Siemens
Type
Full Voltage Non-Reversing, Heavy Duty, Class 14
Voltage Rating
120/240
