Brand: Siemens
Description
Industry Description
Non-reversing motor starter, Size 2, Three phase full voltage, Solid-state overload relay, OLR amp range 13-52A, 110 120/220 240VAC 60Hz coil, Non-combination type, Enclosure type 1, Indoor general purpose use, Standard width enclosure
Modified Industry Description
STARTER,FVNR
AD Description

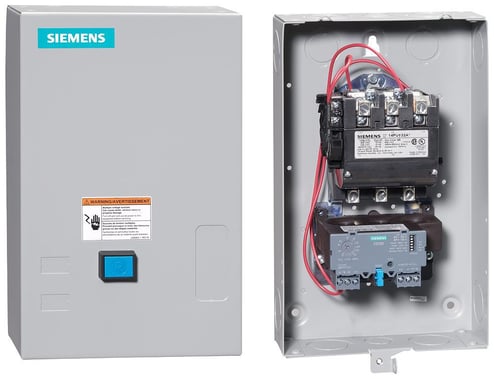

Siemens 14FUF32BA Class 14 Full Voltage Motor Starter, 110 to 120/220 to 240 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1/2 Enclosure
Specifications
| Action |
Non-Reversing
|
|---|---|
| Amperage Rating |
45
|
| Application |
Motor Controls
|
| Connection |
Box Lug
|
| Country of Origin |
MX
|
| Dimensions |
14 in H x 8 in W x 7 in D
|
| Frequency_Rating |
60
|
| Mounting |
Surface
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
-4 to 104
|
| Phase |
3
|
| Size |
14 X 8 X 7 in.
|
| Special Features |
|
| Standard |
UL;CSA
|
| Sub_Brand |
Class 14 Enclosed
|
| Type |
Class 14 Full Voltage
|
| Voltage Rating |
600
|
| Wattage |
8.6
|
