General Cable General Cable 4EPL4S.38.05


Description

Industry Description

Composite Access Control Cable, Plenum NEC Type CMP, UL, c(UL), 4 ELMNT 4SH ACCESS CNTL CMP

Modified Industry Description

4 ELMNT 4SH ACCESS CNTL CMP

AD Description

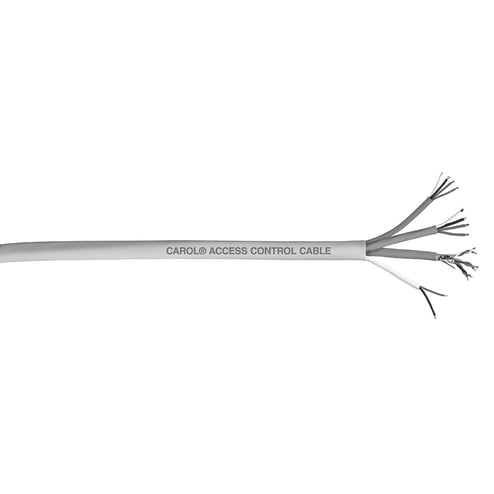

General Cable® Carol® 4EPL4S.38.05 Type CMP Composite Plenum Rated Unshielded Access Control Cable, (4) 22 AWG Stranded Bare Copper Conductor, 500 ft L

Vendor Description

General Cable® Carol® brand is the right solution for alarm and security wire and cable. Carol® offers as broad an offering as anyone in the industry. There are seven basic areas where alarm and security cables are used. General Cable® has the right product to serve every application, including: access control, video Surveillance/CCTV, component video, lighting control & touch Panel systems, fire alarm & life safety, home theater and Burglar Alarms. Our alarm and security cables offer solutions in all major security applications markets, including: commercial buildings; residential housing; business & office campus environments; public stadiums & arenas; airport, train, bus and other transportation hubs; and schools, colleges & universities. Whatever the security application need calls for, General Cable® has a cable that delivers the performance you need.

Specifications

Application
Security systems Access control Card reader Door control REX PowerLimited controls
Color
Yellow
Conductor Type
Stranded Bare Copper
Conductor Size
22
Country of Origin
USA
Length1
500
Number Of Conductors
4
Outside_Diameter
0.43
Special Features

  • Choice between all 4 elements shielded or just the 3-pair element shielded
  • Flexguard® PVC jacket
  • NEC article 800 cable designation type communication cable plenum (CMP)
  • Premium grade, color coded polypropylene jacket
Sub_Brand
General Cable
Temperature_Rating
0 to 60
Type
Type CMP Composite Plenum Rated Unshielded
