NSI NSi GL456
NSI GL456
Kirby Risk #: 2393069
UPC: 66238103603, 662381036032, 00662381036032
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

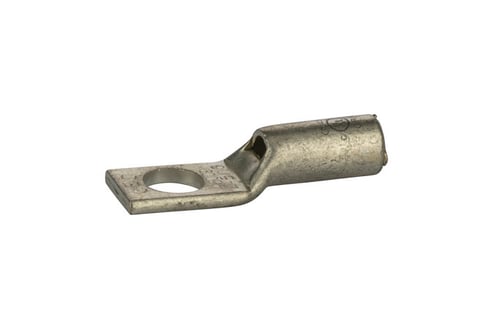

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 5/16" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
4 AWG CU COMPRESSION LUG, 5/16IN
AD Description
NSI GL456 1-Hole Compression Lug With Peep Hole, 4 AWG Stranded Conductor, 5/16 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Gray
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
1.4960
|
| Material |
Copper
|
| Mounting |
5/16 Mounting Hole
|
| Size |
L=1.50 - W=.490 - OD=.340 - ID=.250
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - One Hole
|
| Voltage Rating |
600
|
