Siemens Siemens 14BUB32BC


Description

Industry Description

Non-reversing motor starter, Size 00, Three phase full voltage, Solid-state overload relay, OLR amp range 0.75-3.4A, 220 240/440 480VAC 60Hz coil, Non-combination type, Enclosure type 1, Indoor general purpose use, Standard width enclosure

AD Description

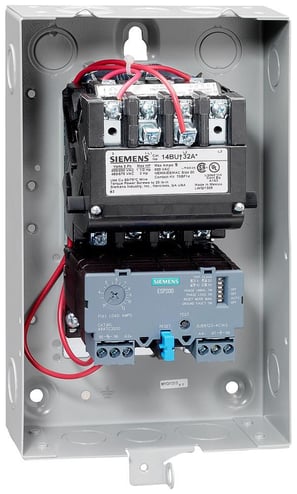

Siemens 14BUB32BC SZ 00 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing NEMA Motor Starter, 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC Coil, 3 Poles, NEMA 1 Enclosure

Specifications

Country of Origin
US
Number_Of_Poles
3
Size
NEMA 00
Special Features

  • 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC motor power
  • 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage
  • Dual voltage and dual frequency coils
  • Easy coil access
  • Gravity dropout
  • Half sizes for cost and space savings
  • Large silver cadmium contacts
  • Overload test feature
  • Rugged industrial design
  • Screw terminal lug line side/load side outgoing feeder connection
  • Straight-thru wiring
Standard
UL Listed File E14900, CSA Certified File LR6535
Sub_Brand
Siemens
Type
Full Voltage Non-Reversing, Heavy Duty, Class 14
Voltage Rating
240/480
