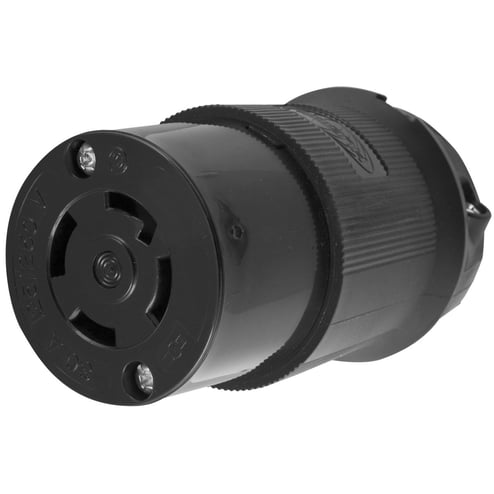

Hubbell Hubbell HBL2713BK
Hubbell HBL2713BK
Kirby Risk #: 2385709
UPC: 78358517233, 783585172330, 00783585172330
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R,Screw Terminal, Black
Modified Industry Description
LKG CONN, 30A 125/250V, L14-30R, BK
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2713BK Heavy Duty Female Grounding Insulated Standard Locking Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Color |
Black
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Dimensions |
2.33 in Dia x 3.88 in L
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Horsepower |
2
|
| Insulation |
Insulated Body
|
| Length1 |
3.9780
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L14-30R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding
|
| Voltage Rating |
125/250
|
