Hoffman Hoffman A72HX6118SSLPQT


Description

Industry Description

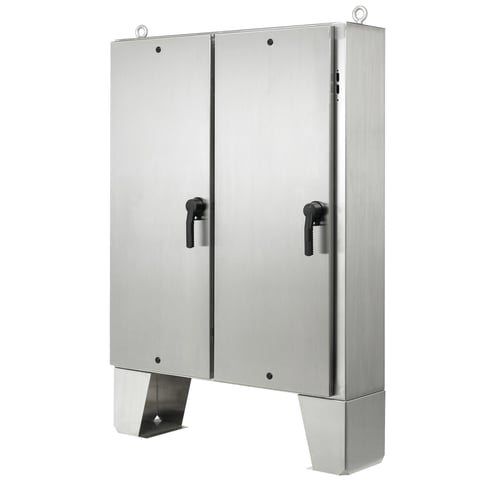

General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X, 72.06x61.31x18.06, SS Type 304

Modified Industry Description

SS 2-DR TYPE 4X DISC ENCL

AD Description

Hoffman A72HX6118SSLPQT A4S2 2-Door Disconnect Enclosure, 72.06 in L x 61.31 in W x 18.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Vendor Description

This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers.

Specifications

Application
Arc Flash Safety; Controls and Drives; Corrosive Environments
Color
Unpainted
Country of Origin
US
Finish
Brushed
Length1
72.06
Material
304 Stainless Steel
Mounting_Type
Free Stand
NEMA_Rating
NEMA 4X/IP66
Series
A4S2
Size
72.06X61.31X18.06 in
Special Features

  • 14 ga doors and 12 ga body from type 304 stainless steel
  • Black die cast quarter turn latches with slotted insert provided on the top and bottom of each door
  • Bolt-on 15 in high stainless steel floor stands
  • Bonding provisions on doors and ground studs on body
  • Collar studs on inside of enclosure back for mounting optional panel
  • Concealed hinges provide 180 deg door opening and allow easy door removal and cleaning of hinge area
  • Data pocket is high impact plastic attached with pressure sensitive adhesive
  • Flange trough collar on all four sides of door openings
  • Heavy duty three point latching mechanism on each door, operated by Hoffmans black die cast POWERGLIDE™ padlocking handle
  • Master door handle provided with integral screwdriver defeater
  • Master door is far right hand door on all enclosures
  • Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order
  • No interior stiffeners to obstruct component mounting
  • Preferred cutout on right-hand flange provides mounting for most disconnect operator
  • Provisions for mounting optional fluorescent light packages
  • Removable centerpost for easy panel installation
  • Seamless foam in place one-piece gasket provides water, oil and dust tight seal against contaminants
  • Seams continuously welded and ground smooth
Standard
UL508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC: Type 3R, 4, 4X, 12, IEC 60529, IP66, Meets NEMA Type 3RX requirements
Sub_Brand
Hoffman
Type
2-Door
