TPI TPI H2905028C


Description

Industry Description

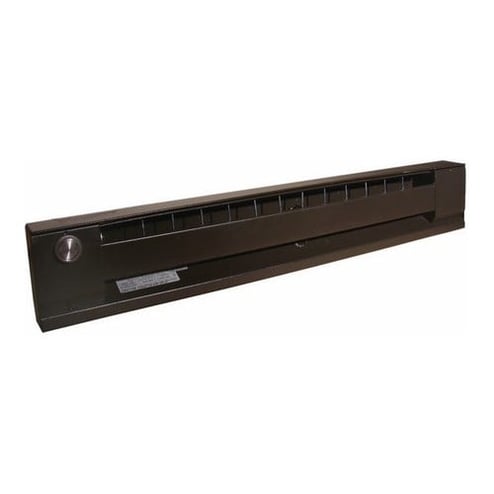

Electric Baseboard - Heavy-Duty Commercial Convection Heater, 240/208 V, 1 PH, 2.1/1.8 AMP, Steel Housing Material, Wall Mounting, Dimensions- 28 Length X 2-1/2 Depth X 6 Height IN, 500/375 WTT, BTU Rating- 1706/1275, Bronze

Modified Industry Description

500/375W 240/208V 28IN COMMERCIAL

AD Description

TPI H2905028C 2900C 1-Phase Heavy Duty Standard Electric Baseboard Convection Heater, 1706/1275 Btu/hr Capacity, 208/240 VAC, 500/375 W Power Rating, Wall Mount

Specifications

Amperage Rating
1.8/2.1
Application
Indoor-Residential/Commercial/Some Industrial
Country of Origin
US
Dimensions
28 X 2-1/2 Dept X 6
Length1
32.0000
Mounting
Wall
Phase
1
Special Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
  • Standard inlet and outlet wireguards
Standard
cETLus Listed
Sub_Brand
TPI
Type
Electric Baseboard - Heavy-Duty
Voltage Rating
208/240
