Fluke FLUKE 373


Description

Industry Description

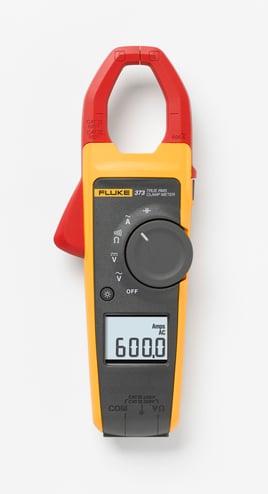

The best of the basics. With true-rms ac voltage and current measurements, the Fluke 373 Clamp Meter reads up to 600 A ac and 600 V ac or dc. Be ready for anything. The new Fluke 373 Clamp Meter offers improved performance perfect for any ac only current measurement situations. Featuring true-rms ac voltage and current measurements, and resistance measurement up to 6000O with continuity detection, the Fluke 373 is everything you need, plus a little more.

Modified Industry Description

Clamp Meter 600 V AC/DC 200 A 6000 Ohm Backlight Display

AD Description

Fluke® FLUKE-373 Clamp Meter, 600 A, 600 VAC/VDC, 6000 Ohm, Dual Backlit Display

Vendor Description

The new Fluke® 373 clamp meter offers improved performance perfect for any AC only current measurement situations. Featuring True-RMS AC voltage and current measurements and resistance measurement up to 6000 Ohm with continuity detection, the Fluke® 373 is everything you need, plus a little more.

Specifications

Accuracy
AC current 600 A, 2 % ± 5 digits; AC voltage 600 V, 1 % ± 5 digits; DC voltage 600 V, 1 % ± 5 digits
Amperage Rating
600 AC
Application
Clamp meter measures true-rms ac and dc voltage, ac current, resistance, and capacitance
Brand Name
FLUKE
Country of Origin
UKN
Dimensions
9.13 in L x 3.35 in W x 1.77 in H
DimensionsInches
9.13 x 3.35 x 1.77
Display
Backlight
Enclosure
Hard Plastic
Material
Plastic
Model
Fluke 373
Number_Of_Digits
4
Operating_Temperature
-10 to 50
Package_Quantity
1
Resistance
6000
Safety_Rating
EN/IEC 61010-1:2001; 600V CAT III, 300V CAT IV
Special Features

  • <=30 Ohm continuity, 10 uF to 1000 uF capacitance
  • 2 deg pollution
  • 6000 Ohm at 1% +/-5 digits accuracy
  • Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
  • State-of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • True-RMS AC voltage and current for accurate measurements on non-linear signals, hard plastic enclosure type
  • With True-RMS AC voltage and current measurements, the Fluke® 373 clamp meter reads up to 600 A AC and 600 VAC/VDC
Standard
ANSI/ISA S82.02.01:2004; CAN/CSA-C22.2 No. 61010-1-04; IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV; Pollution Degree 2; EN/IEC 61010-2-32:2002; EN/IEC 61010-031:2002/A1:2008
Sub_Brand
Fluke
Type
Clamp Meter
Voltage Rating
600
