NSI NSi 4/0TC


Description

Industry Description

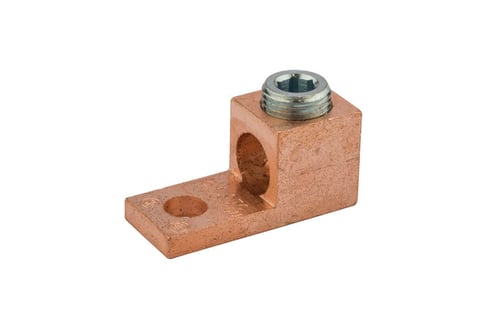

Extruded Copper Lug 4/0 -2 AWG Solid one-piece copper connector made from extruded copper for superior mechanical strength and excellent performance. Steel Screw. Suitable for use with copper wire only. 600V (2000V max. per UL486B). UL 486A/B Listed Wire Connectors.

Modified Industry Description

4/0-2 AWG EXTR. CU LUG

AD Description

NSI 4/0TC Dual Rated Extruded/Single Mechanical Terminal Lug, 6 to 4/0 AWG Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper

Vendor Description

NSI offers its customers electronic ordering, order tracking, demand forecasting and invoicing, and has a well-earned reputation for fast order turnaround and complete fill rates. NSI internal teams offer the retailer responsive development of new products and custom marketing materials.

Specifications

Application
Wire Termination
Color
Copper
Conductor Type
Copper
Conductor Size
6 to 4/0
Country of Origin
USA
Dimensions
1.95 in L x 0.95 in W x 0.812 in H
Environmental_Conditions
90 C
Finish
Copper
Length1
1.9500
Material
Copper
Number Of Conductors
1
Number_Of_Poles
1
Special_Features

  • 1 stud of 3/8 in
  • Solid one piece copper connector made from extruded copper for superior mechanical strength and excellent performance
  • Steel screw type
  • Suitable for use with copper wire only

Standard
UL486B
Sub_Brand
NSi
Temperature_Rating
90
Type
Dual Rated Extruded/Single
Voltage Rating
600
