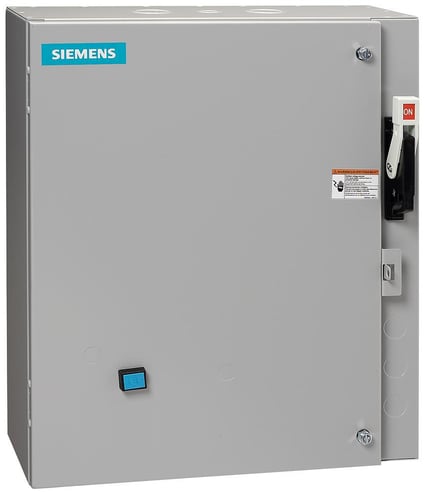

Siemens Siemens 17HUG92BF15


Description

Industry Description

Non-reversing motor starter, Size 3, Three phase full voltage, Solid-state overload relay, OLR amp range 25-100A, 110V 50Hz / 120V 60Hz coil, Combination type,100A fusible disconnect, 100A/600V fuse clip, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

Modified Industry Description

STARTER,COMBO

AD Description

Siemens 17HUG92BF15 SZ 3 Class 17 Full Voltage Heavy Duty Non-Reversing Combination Starter With 100 A, 600 V Fusible Disconnect Switch, 110/120 VAC Coil, 3 Poles, NEMA 1

Specifications

Country of Origin
US
Special Features

  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
  • 50 hp at 460/480 VAC, 50 hp at 575/600 VAC
  • Box lug line side/load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
