Intermatic Intermatic PC2-120-LS2
Intermatic PC2-120-LS2
Kirby Risk #: 2381626
UPC: 61457308731, 614573087315, 00614573087315
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The 2-CHNL 10A SNGL CHNL SW W/LS2 SENSOR Transparent and Dark Sensor Types Available to Accommodates Your Distinct Light-Level Needs, Adjustable Light Level Sensitivity Control, Surface/DIN Rail Mountable, 0 to 100-Second Adjustable Time Delay
Modified Industry Description
2-CHANNEL LIGHT CONTROLLER, 10 AMP
AD Description

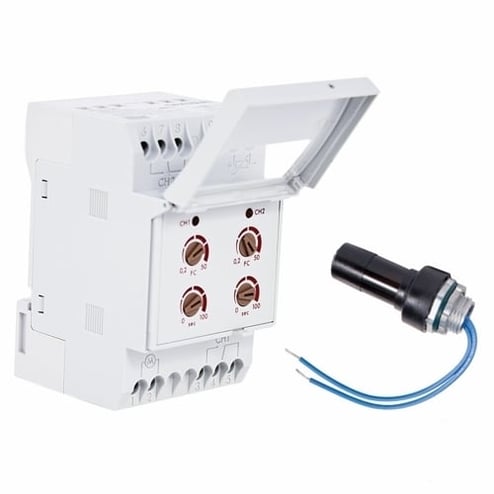

Intermatic® LightMaster™ PC Control System With Sensor, 120 VAC, 10/8 A
Vendor Description
The PC series offers the same control features as the LightMaster™ Series, but allows for the units to easily mount onto a DIN rail for custom installations. This series comes in both 1 and 2-circuit controls and your choice of either a transparent or dark sensor for your application needs. Up to 10 units can be combined to allow large areas of lighting to be controlled from a single LS series sensor, reducing maintenance and installation costs.
Specifications
| Amperage Rating |
10 AMP (Resistive), 8 AMP (Ballast)
|
|---|---|
| Application |
Security Lighting, Atriums, ATM/Banks, Signage, Awnings, Shades, Blinds, Parking Garages, Exterior Lighting, Industrial Yards Off-Shore Rigs, Shipyards, Site Lighting, 24-Hour Retail Convenient Store/Service Establishments, Perimeter Lighting, Accessways, Walkways, Driveways
|
| Class |
LM
|
| Country of Origin |
DE
|
| Frequency_Rating |
50/60
|
| Mounting |
Surface/DIN Rail Mount
|
| Operating_Temperature |
-20 to +55 DEG C, -4 to +131 DEG F
|
| Size |
8.8 HEIGHT X 6.6 WIDTH X 2.9 DEPTH IN, 22.0 HEIGHT X 16.5 WIDTH X 7.3 DEPTH CM
|
| Special Features |
|
| Standard |
cULus Listed, California Title 24 Compliant
|
| Sub_Brand |
Intermatic
|
| Type |
Light Controller Module
|
| Voltage Rating |
120
|
