Fluke FLUKE 28II


Description

Industry Description

The standard for rugged. The Fluke 28 II digital multimeters define the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 degrees Celsius to +55 degrees Celsius (5 degrees Fahrenheit to 131 degrees Fahrenheit, -40 degrees Celsius for up to 20 minutes) and 95 humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeters are built to work in the toughest environments.

Modified Industry Description

TRMS MULTIMETER

AD Description

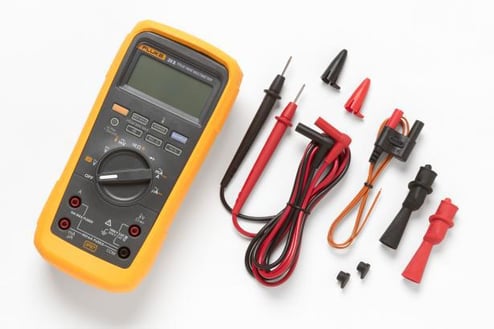

Fluke® FLUKE-28II Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 VAC/VDC, 10 A, 0.1 Ohm to 50 MOhm, Bar Graph/Backlight Display

Vendor Description

Fluke® 28 II digital multimeters define the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 to 55 deg C (5 to 131 deg F, -40 deg C for up to 20 min) and 95% humidity and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke® 20 Series multimeters are built to work in the toughest environments.

Specifications

Amperage Rating
10
Application
Troubleshoot electrical problems in harsh conditions
Country of Origin
UKN
Dimensions
7.8 in H x 3.93 in W x 2.5 in L
Display
6000 counts, updates 4/sec (Model 28 II also has 19,999 counts in high-resolution mode); 33 segments; updates 40/sec
Enclosure
Hard Plastic
Frequency_Rating
0.5 Hz to 199.99 kHz
Length1
11.5400
Material
Plastic
Special Features

  • 6000 count, update 4/s (model 28 II also has 19999 count in high resolution mode), 33 segments, update 40/s display
  • 800 hr of battery life
  • Auto and manual ranging for maximum flexibility, limited lifetime warranty
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Capacitance range 1 nF to 9999 uF
  • Designed to withstand 3 m drop (with holster)
  • Frequency range 0.5 Hz to 199.99 kHz
  • Large display digits and 2 level bright white backlight for increased visibility, rubber holster
  • Long battery life (800 hr)
  • New IP67 waterproof and dustproof protection, completely sealed for use in harsh environments
  • Relative mode to remove test lead resistance from low Ohm measurements
  • Resistance range - 0.1 Ohm to 50 MOhm
  • Reversible holster for added protection when not in use
  • True-RMS AC voltage and current for accurate measurements on non-linear signals
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
  • Withstands hazardous 8000 V spikes caused by load switching and faults on industrial circuits and complies with 2nd edition IEC and ANSI electrical safety standards
Standard
CAT IV 600 V , CAT III 1000 V
Sub_Brand
Fluke
Temperature_Rating
-328 to 1994
Type
Digital Multimeter
Voltage Rating
1000
