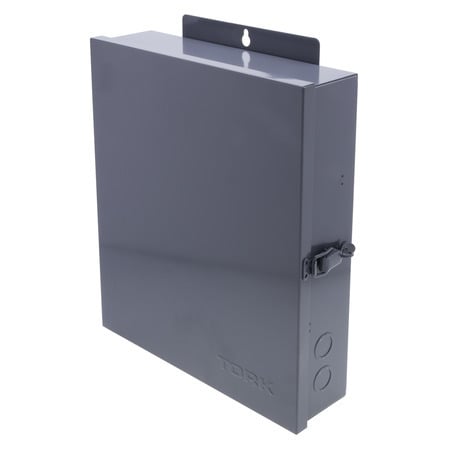

Tork Tork DLC400BP

Industry Description

Tork 7/365 Day 4 Channel SPDT Lighting Control with Portable Memory Module APPLICATIONS: INTERIOR LIGHTING: Open Office Zoning, Hallways, Meeting and Sales Areas, Stock Rooms and Warehouses EXTERIOR LIGHTING: Signage and Store Windows, Security, Parking Lots FEATURES: INPUT VOLTAGE: 120/208-240/277VAC, 50/60Hz OUTPUT CONTACTS: S PDT NO. OF CHANNELS: 4 Channel NO. OF ZONES: 4 Zones TERMINAL RANGE: #12 - #18 AWG POWER CONSUMPTION: 30VA Maximum OPERATING TEMPERATURE: - 40 Degrees to 158 Degrees F (-40 Degrees C to +55 DegreesC) CONFIGURABLE ZONES: Simple three position slide switch sets logic for each zone: Time ON/Time Off, Photo ON/Photo OFF, or Photo ON/Time OFF. SCHEDULING: 99 ON & OFF set points provide individual programs for each day of the week. Minimum setting is 1 minute apart. ASTRONOMIC: 1. Adjustable 10 degrees - 60 degrees Northern or Southern latitudes. 2. Can be individually offset +/-1 - 240 minutes from both sunset and sunrise times. PHOTOSENSOR INPUT: EPC2 photo sensor included. LIGHT LEVEL ACTIVATION: Turn ON is user settable from 1 to 100 footcandle- Each channel has an independent setting. REMOTE OVERRIDE ON: Maintained dry-contact closure or may use TORK model SSA200R-24 for timed override with flash warning before OFF. May use with occupancy sensor as override. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. SEASONS: 1 to 4 with different daily schedules which can wrap around into the new year. HOLIDAYS: 1 to 24 individual dates. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. POWER OUTAGE BACKUP: Permanent schedule retention with memory module. Battery provides real time backup for 6 months cumulative. MEMORY MODULE: Removable Memory Module can be programmed at any one location and inserted into another DLC400 or DZS series unit. See Part # USB-MMP (Sold Separately). OPTION: Memory Module Programmer with software for computer connection programming. Also allows stand alone battery operation for portable copy feature. See Part # USB-MMP (Sold Separately). ENCLOSURE: Metal Indoor/Outdoor NEMA 3R w/ lockable hasp. MANUFACTURER: Tork, UPC: 786261821911 CONTACT RATINGS: GENERAL PURPOSE: 24-277 VAC, 30VDC NO: 30A NC: 30A BALLAST: 120-277 VAC NO: 20A NC: 10A TUNGSTEN: 120 VAC NO: 10A PILOT DUTY: 120-277 VAC NO: 720VA NC: 720VA

Modified Industry Description

365 Day Lighting Panel Astronomic with Memory Module Photosensor & Inputs 4CH 30A 120-277V

AD Description

NSI Tork® DLC400BP 4-Zone SPDT Lighting Control Time Switch With Memory Module Photosensor and Inputs, 120/208/240/277 VAC, 30 A, 1 Poles
