NSI NSi 2/0T
NSI 2/0T
Kirby Risk #: 2370414
UPC: 66238100104, 662381001047, 00662381001047
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

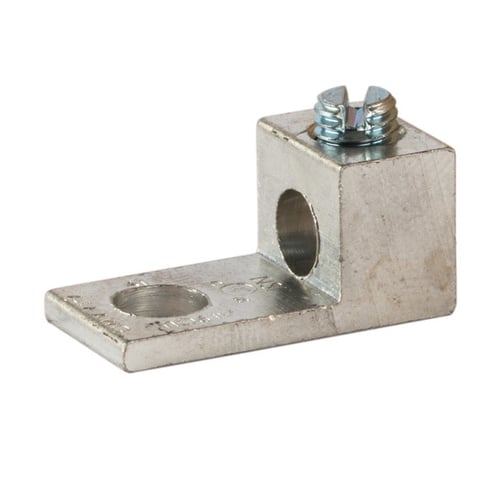

1 Port Aluminum Lug 2/0-14 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
Modified Industry Description
Aluminum Single Lug 2/0-14 Awg
AD Description
NSI 2/0T Dual Rated Lug, 14 to 2/0 AWG, 1/4 in Stud, 1 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Conductor Size |
14 to 2/0
|
| Country of Origin |
USA
|
| Dimensions |
1.47 in L x 0.63 in W x 0.79 in H
|
| Environmental_Conditions |
90 C
|
| Finish |
Electro-Tin Plated
|
| Length1 |
1.4700
|
| Material |
Aluminum
|
| Number Of Conductors |
1
|
| Number_Of_Poles |
1
|
| Series |
T Series
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Aluminum Single Lug
|
| Voltage Rating |
600
|
