NSI NSi GL35048
NSI GL35048
Kirby Risk #: 2367182
UPC: 66238103616, 662381036162, 00662381036162
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

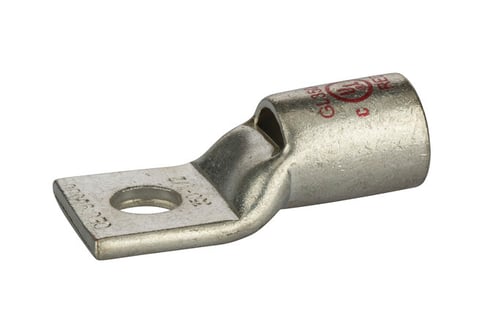

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 350 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
350 MCM CU COMPRESSION LUG 1/2 BOLT
AD Description
NSI GL35048 1-Hole Compression Lug With Peep Hole, 350 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Red
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
1.6250
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Size |
L=2.61 - W=1.28 - OD=.870 - ID=.700
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - One Hole
|
| Voltage Rating |
600
|
