Siemens Siemens CLM0E05120


Description

Industry Description

Mechanically held lighting contactor, Contactor amp rating 100A, 0 N.C. / 5 N.O. poles, 110VAC 50HZ/120VAC 60HZ coil, Non-combination type, Enclosure NEMA type(open), No enclosure

AD Description

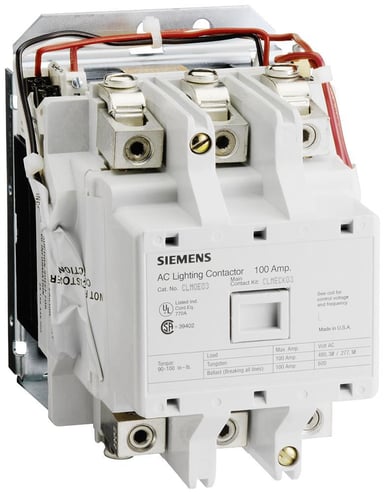

Siemens CLM0E05120 Class CLM Mechanically/Magnetically Held Lighting Contactor, 120 VAC Coil, 100 A, 0NC-5NO Contact, 5 Poles

Vendor Description

Siemens Class CLM magnetically and mechanically held lighting contactors are used in applications where it is critical that the contacts remain in the closed position during loss of control power. These contactors do not change state and disconnect power from the load during a loss of control power whether momentary or sustained. That is because the operating coil is not required to be continuously energized. Since the coil is not continuously energized, energy is saved and coil hum is eliminated. This makes the contactor also ideal for applications where quite operation is critical.

Specifications

Country of Origin
US
Length1
11.0000
Special Features

  • Also used where energy efficient and quiet operation is desired
  • Contacts are rated 20 to 400 A at 600 VAC
  • Full line of factory and field modifications
  • Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
  • Used in critical applications where the contacts must remain closed if control power is lost
