Hubbell Hubbell HBL4W100C
Hubbell HBL4W100C
Kirby Risk #: 2351203
UPC: 78358512079, 783585120799, 00783585120799
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Surge Protective Devices, Surface MountBlock, 100KA, 3-Phase 120/208V AC
Modified Industry Description
100KA 120/208V 3PH SURGE
AD Description

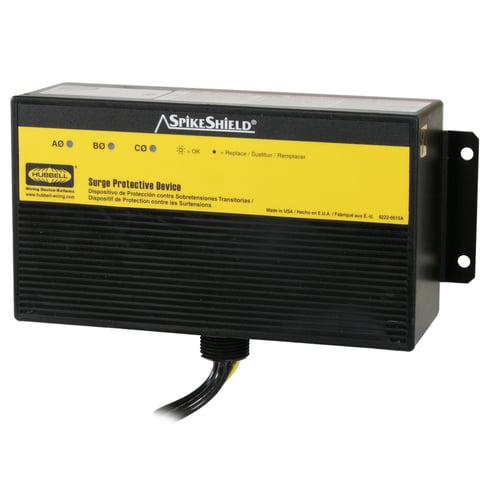

Wiring Device-Kellems SpikeShield® HBL4W100C Type 2 Wired-In Branch Surge Panel Protector, 120/208Y VAC, 60 Hz, 3 Phase, 10 AWG Wire
Vendor Description
The wired-in surge protection device brick design is ideal for areas where space is a major consideration. The surge unit can be mounted directly to the panel through a chase nipple connection which will reduce lead length and impedance while increasing protection levels.
Specifications
| Application |
Surface Mount Brick with Leads
|
|---|---|
| Class |
C
|
| Connection |
Leads
|
| Country of Origin |
MX
|
| Dimensions |
4.8 in H x 9.9 in W x 3.1 in D
|
| Environmental_Conditions |
-40 to 149 deg F Operating Temperature
|
| Frequency_Rating |
60
|
| Length1 |
10.9000
|
| Material |
Steel
|
| Mounting |
Mounting Screws
|
| Mounting_Type |
Threaded
|
| Operating_Temperature |
-40 Degrees F to 149 Degrees F (-40 C to 65 C)
|
| Phase |
3
|
| Series |
Wired-In Panels
|
| Size |
100kA Peak
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Type 2 Wired-In Branch
|
| Voltage Rating |
120/208
|
