Hubbell Hubbell HBL1223WU


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A120/277V AC, Back and Side Wired, White, USA

Modified Industry Description

3W TOG, IND GRD, 20A 120/277V, WH,

AD Description

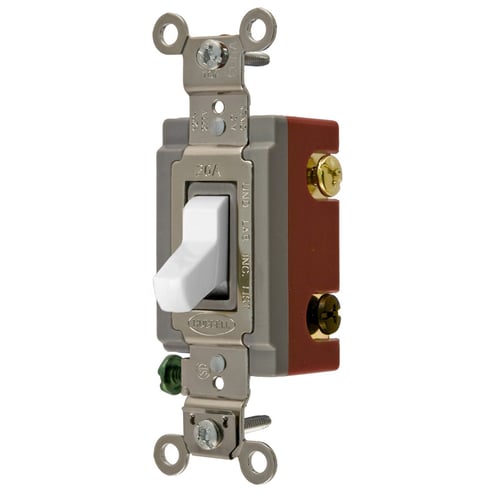

Wiring Device-Kellems HBL® HBL1223WU 3-Way 2-Position Extra Heavy Duty Industrial Grade Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 1 to 2 hp, SPDT

Specifications

Action
Positive Snap
Actuator
Toggle
Amperage Rating
20
Application
Heavy Duty Industrial
Color
White
Connection
Back and Side Wired
Country of Origin
PR
Enclosure
None
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
None
Length1
4.1600
Mounting
Screw Mount
Number_Of_Poles
1
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • Abuse resistant nylon toggle
  • Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
  • Elastomer rocker assures quiet operation and precise timing
  • Large brass binding head screws with deep slots
  • Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
  • One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
  • One piece design engineered thermoset base for superior heat dissipation
  • One piece design high impact resistant thermoplastic front for heavy duty industrial environments
  • One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
  • Permanently lubricated assembly provides long life and trouble free operation
  • Prominent amperage marking on mounting strap allows easy identification of rating
  • Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
  • Steel nickel plated mounting strap provides a superior corrosion resistant finish
  • Strip gauge for accurate wiring
  • Thread cleaning captive mounting screw
Standard
NEMA WD1, UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Type
General Purpose Switches
Voltage Rating
120/277
Wattage
5,540
